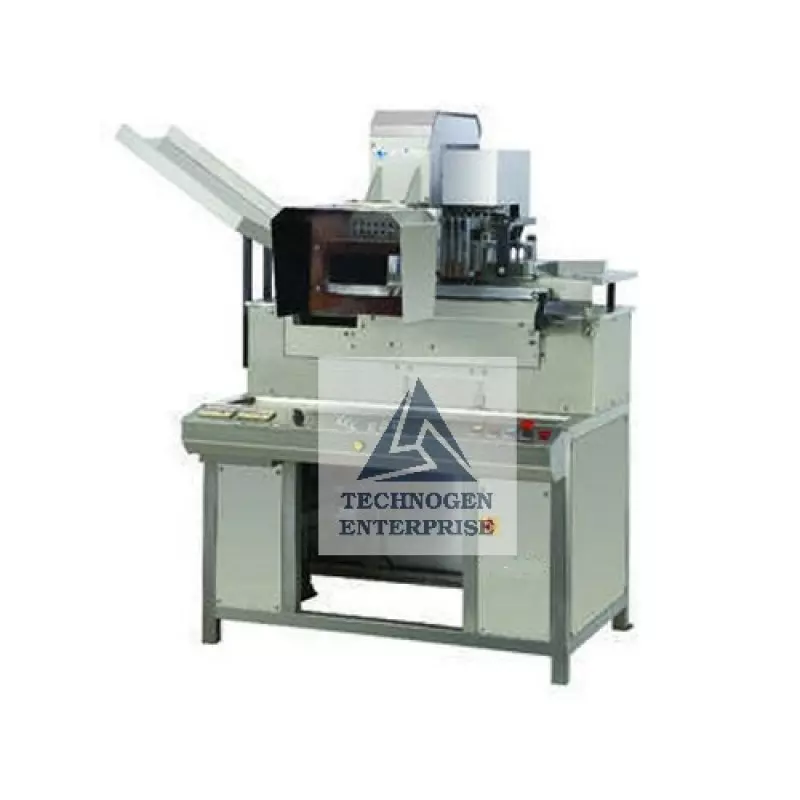

Semi-Automatic Ampoule Visual Inspection Machine In Canada
Ampoule Visual Inspection Machine Details
Introduction: Raising the Standards of Injectable Quality in Canada
In Canada’s pharmaceutical and injectable manufacturing industries, quality control and regulatory compliance are non-negotiable. Every injectable product must undergo strict visual inspection to detect potential defects and ensure safety before reaching patients. At Technogen Enterprise, we empower Canadian pharmaceutical manufacturers with our advanced Semi-Automatic Ampoule Visual Inspection Machine (Model TGAIM-60)—a cutting-edge solution designed to ensure accuracy, efficiency, and compliance.
As a trusted manufacturer, supplier, and exporter, we take pride in providing Canadian companies with world-class inspection technology that blends precision engineering, robust design, and operational simplicity.
The Role of Ampoule Inspection in Canada’s Pharmaceutical Industry
Ampoules are widely used for injectable medicines, vaccines, and biologics. However, contamination risks such as glass fragments, dirt particles, filter residues, black spots, or cracks can jeopardize both patient safety and regulatory compliance.
With Canada’s strict Health Canada regulations and GMP guidelines, visual inspection is a critical stage of pharmaceutical production. Our TGAIM-60 Semi-Automatic Ampoule Visual Inspection Machine ensures that every ampoule leaving your production line is free from defects, impurities, and contamination risks.
Key Benefits of the Technogen Ampoule Visual Inspection Machine
Canadian pharmaceutical and biotech companies choose Technogen’s TGAIM-60 because it offers unmatched performance and reliability.
✅ High Accuracy – Detects even the smallest foreign particles, cracks, and impurities.
✅ Speed & Efficiency – Inspects up to 3600 ampoules per hour with six high-speed spinning assemblies.
✅ User-Friendly Operation – Designed for easy loading, unloading, and inspection with minimal human intervention.
✅ Compliance Ready – Fully aligned with CGMP standards for Canadian and international markets.
✅ Robust Design – Built from AISI 304 stainless steel for hygiene, durability, and long-term use.
✅ Cost-Effective – Reduces rejection rates, minimizes risks, and optimizes quality control.
How the Machine Works: Precision at Every Step
The TGAIM-60 Ampoule Visual Inspection Machine is engineered for accuracy with an advanced spinning mechanism and magnified inspection system.
Loading – Ampoules are placed on a tray and fed into the machine.
Spinning – Six independent spinning assemblies rotate ampoules, creating a liquid vortex that reveals impurities.
Illumination & Magnification – Backlit lighting and magnification lenses provide a clear view of particles or cracks.
Inspection – Operators visually inspect ampoules, assisted by magnification lenses (1.75x overall, 3x localized).
Separation & Rejection – The reflex photoelectric sensor and ejection switch streamline the rejection process.
Counting & Monitoring – Dual counters track total ampoules inspected and rejection numbers for production reporting.
This systematic process ensures high accuracy and efficiency, meeting the strictest pharmaceutical inspection requirements in Canada.
Salient Features of the TGAIM-60 Ampoule Visual Inspection Machine
Compact, CGMP-compliant design for pharmaceutical plants.
Contact parts made of AISI 304 stainless steel for hygiene and durability.
Tray-based ampoule loading and unloading system for operator convenience.
Separate Variable Frequency Drives (VFDs) for the main machine and spinning assemblies.
Photoelectric sensor for accurate ampoule separation.
Six high-speed spinning units to generate vortex movement in liquids.
Magnification system with 1.75x overall and 3x localized zoom.
Two 18W magnifying lamps with ~1800 lumens brightness for clear visibility.
Dedicated ejection switch for easy rejection.
Repeat cycle arrangement for rechecking ampoules if necessary.
Dual production counters:
One for total ampoules inspected.
One for rejected ampoules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TGAIM-60 |
| Automation Grade | Semi-Automatic |
| Machine Speed | 50–60 ampoules/minute (depends on operator skill) |
| Output | Up to 3600 ampoules/hour |
| Ampoule Size Range | 1 ml to 10 ml (with change parts) |
| Ampoule Diameter | 10 mm – 15 mm |
| Ampoule Height | 55 mm – 125 mm |
| Spinning Assemblies | 6 |
| Material | AISI 304 stainless steel, brass, aluminum |
| Finish | Stainless Steel Matte Finish |
| Working Height | 1200 mm (sitting operator level) |
| Power Supply | 230V, 1 Phase, 50Hz |
| Power Consumption | 1.5 KW |
| Compressed Air Requirement | 2 KG/CM² |
| Dimensions (L x W x H) | 1600 x 1050 x 1600 mm |
| Net Weight | 250 Kg |
| Gross Weight | 475 Kg |
| Warranty | 1 Year from dispatch |
| Country of Origin | India |
Material of Construction
Every component of the TGAIM-60 is built for hygiene, precision, and durability.
Main Body & Doors – AISI 304 Stainless Steel
Infeed & Outfeed Tray – AISI 304
Star Wheel – Aluminum
Ampoule Holder – Brass & Aluminum
Output & Rejection Hopper – AISI 304
Spinning Gear – Nylon
Spinning Head – Mild Steel with SS304 Cladding
Electrical Panel Box & Operator Panel – AISI 304
Gears & Shafts – Mild Steel
This material composition ensures the machine withstands long-term usage, high-volume production, and stringent Canadian GMP requirements.
Canadian Industry Applications
The TGAIM-60 Semi-Automatic Ampoule Visual Inspection Machine is widely used across Canada in:
Pharmaceutical Manufacturing – Injectable medicines, vaccines, oncology drugs.
Biotechnology Sector – Protein-based formulations, biologics, and biosimilars.
Veterinary Healthcare – Veterinary injectables and specialized treatments.
Contract Manufacturing Units (CMOs) – Ensuring compliance for clients across North America.
Why Canadian Manufacturers Trust Technogen
Global Export Expertise – Proven record of supplying inspection machines to regulated markets worldwide.
Regulatory Alignment – Designed to meet Health Canada, US FDA, and EU GMP requirements.
Operator-Friendly Design – Simplifies training, reduces fatigue, and ensures consistency.
High ROI – Reliable inspection reduces recalls, penalties, and regulatory risks.
Dedicated Support – After-sales service, spare parts, and validation documentation.
Trade & Ordering Information
Minimum Order Quantity: 1 Machine
Production Capacity: 4 Machines per Month
Ordering Code: TGAIM-60
Delivery Time: 4–5 weeks
Packaging: ISBM-15 Compliant Sea-worthy Packaging
Nearest Seaport: Mundra, Gujarat, India
Payment Terms: T/T, L/C (for international trade)
Value-Added Services for Canadian Clients
Technogen Enterprise is committed to supporting Canadian clients beyond machine supply:
Validation Documents: DQ, IQ, and OQ documentation provided.
After-Sales Service: Prompt technical support and spare parts.
Customization Options: Machine settings tailored for your production.
Competitive Pricing: Affordable without compromising quality.
Conclusion: Elevate Your Quality Control with Technogen Canada
In today’s pharmaceutical landscape, precision and compliance define success. With Technogen’s TGAIM-60 Semi-Automatic Ampoule Visual Inspection Machine, Canadian companies gain a reliable, efficient, and GMP-compliant solution to safeguard product quality and patient safety.
Whether you manufacture vaccines, biologics, or injectable medicines, our machine ensures that every ampoule meets the highest quality standards before reaching the market.
Partner with Technogen Enterprise Canada today and take your visual inspection process to the next level.
