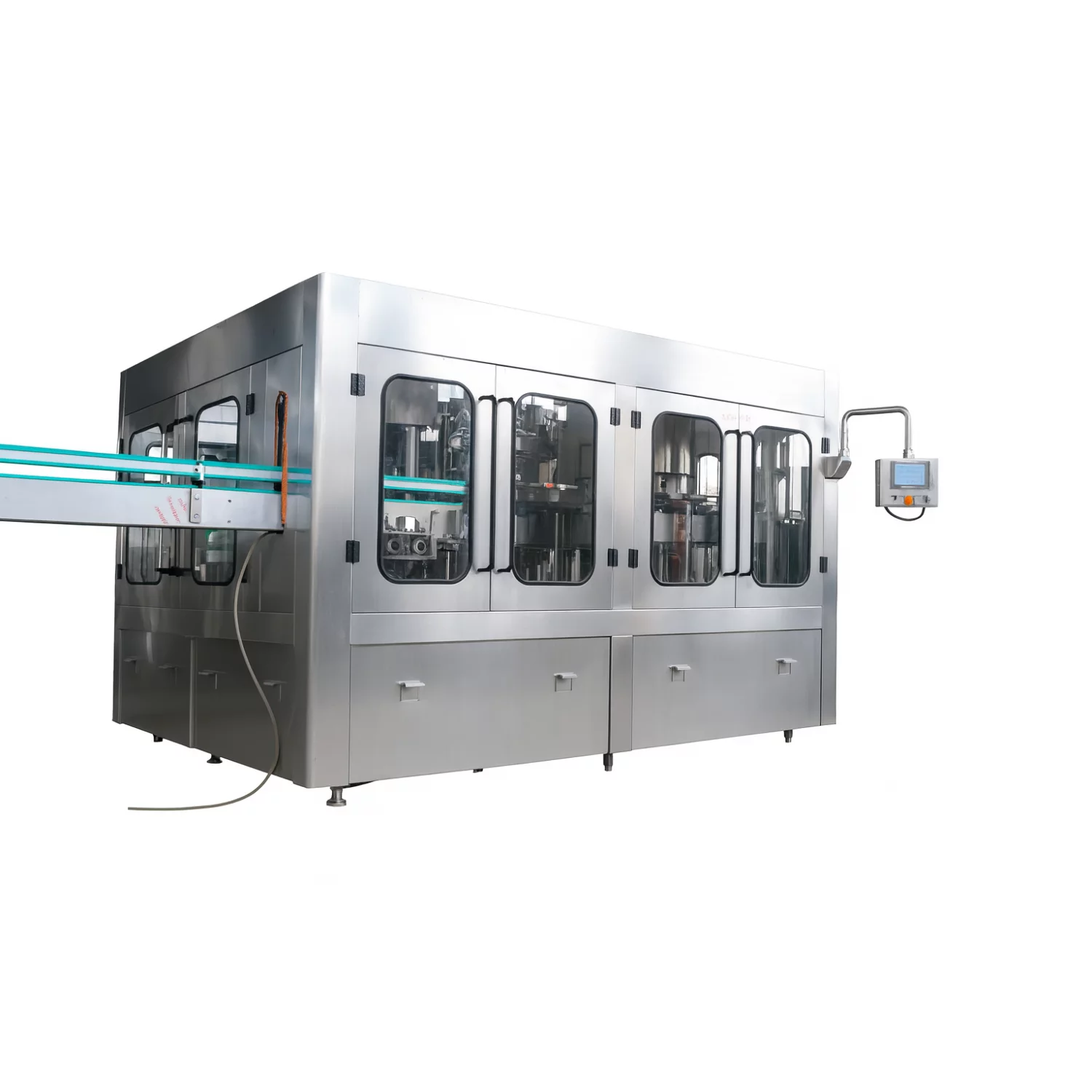

Automatic Glass Bottle Isobaric Carbonated Beverage Filling Machine Canada

echnogen Enterprise, a global leader in the design, manufacture, and export of beverage packaging machinery, proudly presents the Automatic Glass Bottle Isobaric Carbonated Beverage Filling Machine. This state-of-the-art, high-performance monoblock system is engineered for precision filling of carbonated beverages in glass bottles. Designed for exceptional accuracy, consistency, and hygiene, it ensures carbonation retention and product quality for beverage manufacturers in Canada and beyond.

Engineered for Superior Beverage Production

The Automatic Isobaric Carbonated Beverage Filling Machine is ideally suited for beverages that require carbonation stability, hygiene, and sealing integrity. Key applications include:

• Carbonated Soft Drinks (CSD)

• Sparkling Fruit Beverages

• Soda and Aerated Beverages

• Beer and Craft Beer

• Tonic Water

• Carbonated Functional Drinks

• Energy Drinks

Carbonated beverages behave differently from still liquids, demanding:

• Minimal turbulence during filling

• Zero oxygen ingress

• Consistent CO₂ retention

• Precise headspace control

• Accurate liquid levels

This machine integrates advanced counter-pressure isobaric filling technology, ensuring smooth, high-efficiency production while maintaining the highest standards of quality.

Machine Design & Construction

Crafted from robust stainless steel, the Automatic Glass Bottle Isobaric Carbonated Beverage Filling Machine boasts an SS304/SS316L structure that ensures durability, corrosion resistance, and adherence to food-grade standards. Key design highlights include:

• Rotary Rinsing Turret: Equipped with precise neck-handling grippers.

• Isobaric Mechanical Filling Valves: ULTRA technology for stable carbonation.

• Smooth Star-Wheel Bottle Transfer System: For efficient bottle handling.

• Capping Turret: Choice of Crown or ROPP capping, depending on customer requirements.

• Full Protective Guarding: Safety interlocks for enhanced security.

• PLC & HMI-Based Controls: For intuitive automation and real-time monitoring.

This design ensures easy maintenance, hygiene, and long operational life.

Working Process of the RFC Isobaric Carbonated Beverage Filling Machine

This high-speed, fully automated system performs three synchronized processes: rinsing, filling, and capping.

1. Rinsing Process:

   • Every glass bottle undergoes an internal cleaning cycle using stainless-steel spray nozzles, either water or sterile air rinsing, and inversion for effective drainage. The "No Bottle – No Rinse" feature ensures efficient operation.

2. Isobaric Filling (Counter-Pressure Technology):

   • The isobaric filling method is the industry standard for carbonated beverage bottling. Key features include:

     • ULTRA mechanical 2-step filling valves.

     • Controlled CO₂ pressurization and oxygen removal.

     • Long-tube filling to prevent turbulence and maintain carbonation.

3. Capping Process:

   • Crown or ROPP capping options are available, with magnetic sealing heads for reliable tamper-proof seals. The capping turret is synchronized with the filling turret, ensuring perfect sealing and bottle integrity.

Salient Features

• Fully automatic rotary Rinser–Filler–Capper (RFC) monoblock system.

• Suitable for 100 ml to 1000 ml glass bottles.

• Choice of Crown Capping or ROPP Aluminium Capping.

• Constructed with stainless steel SS304 / SS316L for corrosion resistance and food-grade standards.

• ULTRA isobaric valve technology for superior carbonation control.

• Smooth, efficient bottle transfer system via star wheels.

• Real-time monitoring with PLC and HMI-based system.

• CIP-compatible filling bowls and product contact areas for hygienic operation.

• Energy-efficient motors and drive systems.

• Full protective guarding with interlocking safety switches.

Technical Specifications

Machine Advantages

• Maintains carbonation integrity and beverage quality.

• High fill accuracy and minimal foaming.

• Low maintenance and reduced downtime.

• Ideal for breweries, soft drink units, and premium beverage manufacturers.

• Robust construction ensures a long operational life.

• Energy-efficient, reducing overall production costs.

• Fast bottle size changeover, increasing operational flexibility.

Applications

This machine is ideal for businesses in various industries:

• Breweries: Ensures consistent carbonation and quality in beer production.

• Soda Bottling Units: Perfect for carbonated soft drinks.

• Carbonated Soft Drink Manufacturers: Retains carbonation while filling a wide range of products.

• Sparkling Beverage Producers: Including sparkling fruit drinks and tonic water.

• Energy Drink Production Units: Ensures carbonation integrity for energy beverages.

• Contract Bottling Facilities: Suitable for high-volume, high-speed operations.

Why Choose Technogen Enterprise?

Technogen Enterprise is a trusted partner for beverage manufacturers worldwide. With over decades of experience, we offer:

• Precision-engineered carbonation bottling solutions for superior performance.

• Global export capabilities, serving clients across major Canadian industrial hubs like Toronto, Vancouver, Calgary, and Montreal.

• High-grade stainless-steel construction for durability and corrosion resistance.

• Reliable after-sales support to ensure smooth operations post-installation.

• Tailored configurations based on specific customer needs.

• Competitive pricing for premium build quality and technology.

• Fast delivery and installation assistance for quick operational setup.

Frequently Asked Questions (FAQs)

1. Can the machine handle both crown and ROPP capping?

   • Yes, the machine can be configured with either crown capping or ROPP capping based on customer requirements.

2. What bottle sizes are supported?

   • The machine supports glass bottles ranging from 100 ml to 1000 ml.

3. Is the machine suitable for beer production?

   • Yes, the isobaric filling system is ideal for beer, ensuring carbonation retention and preventing foam formation.

4. How does the machine maintain carbonation?

   • The system uses advanced counter-pressure filling technology to preserve CO₂ levels and avoid oxidation.

5. What is the machine’s output capacity?

   • The machine can produce between 3,000 and 12,000 bottles per hour, depending on the head configuration.

Contact Technogen Enterprise

Elevate your beverage production standards with the Automatic Glass Bottle Isobaric Carbonated Beverage Filling Machine. Designed for reliability, precision, and long-term performance, this system is the ideal solution for carbonated beverage operations. Reach out to Technogen Enterprise today to learn how we can help streamline your production process.
