Automatic Volumetric Liquid Filling Machine For High-Speed Filling In Canada

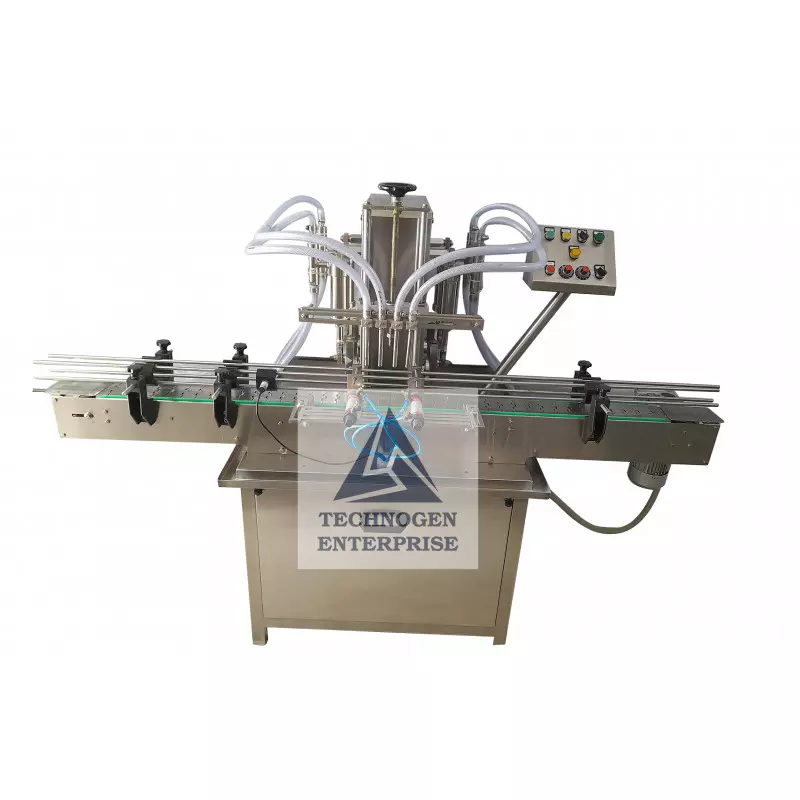

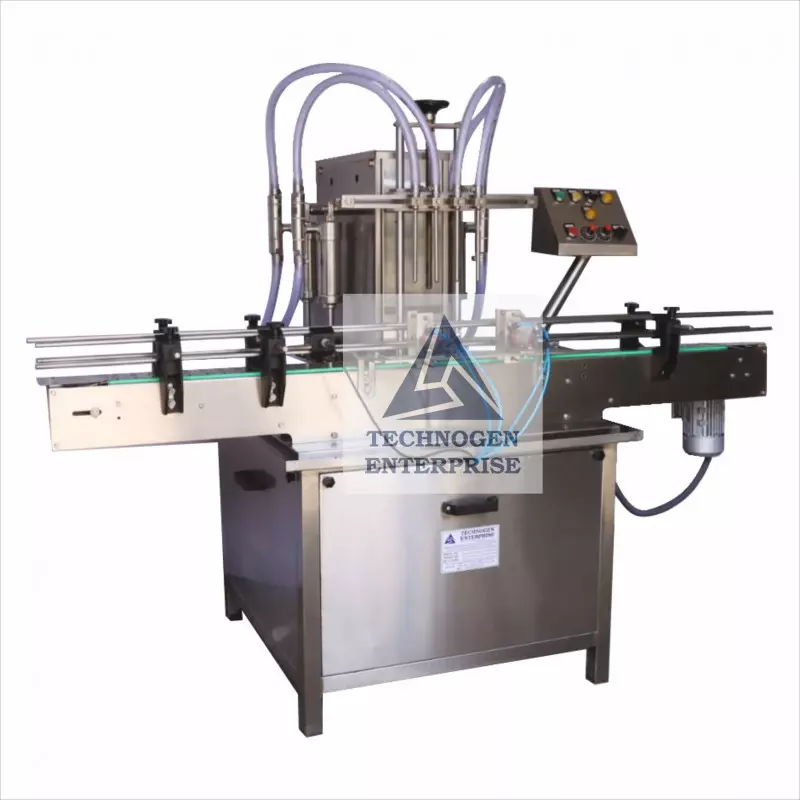

Automatic Volumetric Liquid Filling Machine Details
At Technogen Enterprise, we bring innovation and precision together with our Automatic Volumetric Liquid Filling Machine, engineered for industries that demand high-quality, reliable, and efficient liquid filling solutions.
This advanced machine is designed on a modular concept, allowing flexibility for a wide range of bottle shapes and sizes. Available in 2, 4, 6, 8, and 12-head configurations, it ensures seamless scalability for small, medium, and large-scale production units across Canada’s pharmaceutical, food, cosmetics, and syrup industries.
Built to CGMP standards, the equipment features 316L stainless steel contact parts for safe, hygienic filling and a robust 304 stainless steel body for durability. Using the volumetric principle, the machine employs syringes for precise filling, supported by a photoelectric sensor that detects bottles, ensuring accuracy.
Its "No Bottle – No Filling" mechanism reduces wastage and improves productivity, making it an ideal choice for Canadian manufacturers seeking a cost-effective, high-speed filling solution.
Key Features & Benefits
CGMP compliant design ensures global quality standards.
Modular construction supports multiple bottle shapes & sizes.
Durable stainless-steel build (SS 316L contact parts, SS 304 body).
Tool-less guide rails for quick & easy bottle changeovers.
Adjustable ram shaft eccentricity for precise fill volume control.
Wide filling range: 5 ml – 1000 ml (with double-stroke filling option for 1000 ml).
Self-centering device ensures bottle alignment for accuracy.
Diving nozzles minimize foaming & spillage.
Collection tray design protects conveyor & reduces maintenance.
Variable Frequency Drive (VFD) for speed adjustment.
Integrated production counter for real-time output tracking.
No Bottle – No Filling system for zero wastage.
Technical Specifications
Model | TGLF-20 | TGLF-50 | TGLF-80 | TGLF-120 | TGLF-150 |
Automation Grade | Automatic | Automatic | Automatic | Automatic | Automatic |
Brand | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise |
Machine operating Direction | Left to Right | Left to Right | Left to Right | Left to Right | Left to Right |
No of Filling Head | 2 Head | 4 Head | 6 Head | 8 Head | 12 Head |
Filling Technology | Volumetric Filling | Volumetric Filling | Volumetric Filling | Volumetric Filling | Volumetric Filling |
Production Speed | 25 Bottle per minute | 50 Bottle per minute | 80 Bottle per minute | 100 Bottle per minute | 150 Bottle per minute |
Filling Accuracy | ±1 % | ±1 % | ±1 % | ±1 % | ±1 % |
Filling Range | 5 ml to 1000ml | 5 ml to 1000ml | 5 ml to 1000ml | 5 ml to 1000ml | 5 ml to 1000ml |
Bottle Diameter | 16 mm to 100 mm | 16 mm to 100 mm | 16 mm to 100 mm | 16 mm to 100 mm | 16 mm to 100 mm |
Bottle Height | Up to 100 mm | Up to 100 mm | Up to 100 mm | Up to 100 mm | Up to 100 mm |
Speed Variation | Through Variable Frequency Drive | Through Variable Frequency Drive | Through Variable Frequency Drive | Through Variable Frequency Drive | Through Variable Frequency Drive |
Production Counter | 6 Digit Inbuilt Counter | 6 Digit Inbuilt Counter | 6 Digit Inbuilt Counter | 6 Digit Inbuilt Counter | 6 Digit Inbuilt Counter |
Power Consumption | 0.5 HP | 1 HP | 1.5 HP | 2 HP | 3 HP |
Electrical Connection | 230 V, SINGLE PHASE, 50 HZ | 230 V, SINGLE PHASE, 50 HZ | 230 V, SINGLE PHASE, 50 HZ | 230 V, SINGLE PHASE, 50 HZ | 230 V, SINGLE PHASE, 50 HZ |
Height of Conveyor from Datum | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm |
Dimension | 1530 X 850 x 1700 | 1830 X 850 x 1700 | 2130 X 850 X 1700 | 2430 x 950 x 1700 | 3050 X 950 X 1700 |
Machine External Finish | SS matt Finish | SS matt Finish | SS matt Finish | SS matt Finish | SS matt Finish |
Optional Add-On Features
Buffer tank with stirrer for continuous liquid supply.
Safety cabinet (Toughened Glass / Acrylic / Polycarbonate).
Tower light indicator for machine status.
PLC – HMI interface for easy control.
21 CFR Part 11 compliance (pharma-grade automation).
Laminar Air Flow Hood (ceiling suspended or embedded).
Applications
The Automatic Volumetric Liquid Filling Machine is widely used across Canadian industries:
Pharmaceuticals – syrups, suspensions, and oral liquids.
Food & beverages – sauces, oils, juices, syrups.
Cosmetics – shampoos, lotions, serums.
Chemicals – cleaning liquids, solvents, industrial fluids.
Why Choose Technogen Enterprise?
Trusted manufacturer & exporter with global presence.
Advanced filling accuracy with proven ±1% precision.
Flexible configurations (2–12 heads) for scaling production.
Compliance with international standards (CGMP, 21 CFR Part 11).
Reliable, durable, and cost-effective filling solutions.
Contact us
The Automatic Volumetric Liquid Filling Machine by Technogen Enterprise is an efficient, accurate, and versatile solution for Canadian manufacturers. Designed with CGMP compliance, stainless-steel construction, and advanced automation features, it is perfectly suited for pharma, food, cosmetics, and chemical industries.
With multiple configurations, precise volumetric filling, and add-on automation options, this machine offers the flexibility and reliability you need to optimize your production line.
