Semi Automatic Tube Filling And Sealing Machine In Canada – Efficient & Reliable
Semi Automatic Tube Filling And Sealing Machine Details

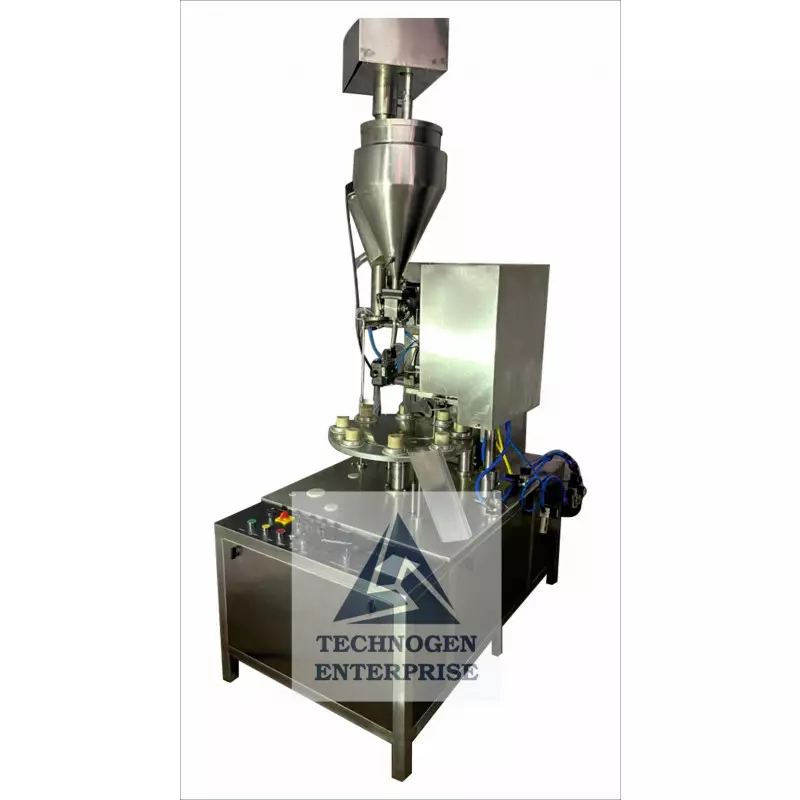

Semi Automatic Tube Filling and Sealing Machine – Superior Packaging Technology
At Technogen Enterprise, we manufacture, supply, and export Semi Automatic Tube Filling and Sealing Machines designed to deliver unmatched accuracy, efficiency, and durability. Trusted by Canadian industries, this machine is engineered to fill and seal laminated and aluminium tubes with a wide variety of products, including creams, ointments, gels, pastes, glues, toothpaste, and other semi-solid materials.
Built in compliance with CGMP standards, the machine ensures precise filling, secure sealing, and hygienic operation. With advanced features like a No Tube – No Fill system and high-grade stainless-steel contact parts (SS316L), this equipment guarantees consistent quality and efficiency in every production cycle.
Applications Across Canadian Industries
Our Semi Automatic Tube Filling and Sealing Machine is widely used in:
Pharmaceuticals: For ointments, medicated creams, gels, and dermatological products.
Cosmetics & Personal Care: For toothpaste, face creams, hair gels, lotions, and cosmetic pastes.
Ayurveda & Herbal Products: For herbal creams, balms, and organic formulations.
Nutraceuticals & Health Care: For vitamin-based creams and nutraceutical ointments.
Chemical & Adhesives: For industrial pastes, sealants, and glues.
How It Works
Tube Feeding: Tubes are manually loaded into nylon tube holders by the operator.
Tube Detection: A No Tube – No Fill mechanism ensures material is only dispensed when a tube is present.
Filling Operation: The pump unit advances and fills the tube with the exact required volume of product.
Sealing Mechanism: Tubes are indexed to the sealing station where they undergo precise folding and sealing.
Coding Station: Batch numbers or manufacturing details are printed on the sealed end.
Ejection System: The sealed tubes are automatically ejected and deflected into the receiving hopper for easy collection.
This streamlined process ensures accurate filling, secure sealing, and professional packaging results—making it a reliable choice for Canadian manufacturers.
Salient Features of the Machine
CGMP Compliant: Built to meet international quality and safety standards.
Durable Nylon Tube Holders: Long-life holders ensure reliable operation.
High-Grade SS316L Contact Parts: Ensures hygiene and corrosion resistance.
Guarded Moving Parts: Enhanced operator safety.
Accurate Filling Mechanism: ±2% tolerance for precise dosing.
23-Litre Jacketed Hopper: Allows large batch operations with temperature stability.
CE Certified Gearbox & Motors: Ensures smooth, durable, and efficient performance.
Variable Frequency Drive: Provides speed variation control.
Automatic Tube Ejection: Streamlines operations and reduces manual handling.
Technical Specifications
| Parameter | Details |
|---|---|
| Machine Name | Semi Automatic Tube Filling and Sealing Machine |
| Model | TGAU-30S |
| Brand | Technogen Enterprise |
| Automation Grade | Semi Automatic |
| Direction | Left to Right |
| Applications | Creams, ointments, toothpaste, gels, pastes, and other semi-solid materials |
| Production Speed | 30–40 tubes/min (depending on product & operator efficiency) |
| Finish | Stainless Steel Matt Finish |
| Hopper Metallurgy | SS 316L |
| Tube Diameter | 12 mm – 32 mm max |
| Tube Height | 55 mm – 190 mm max |
| Filling Volume | 10 gms – 150 gms |
| Filling Accuracy | ±2% |
| Filling Head | 1 Head |
| Sealing Head | 1 Head |
| Speed Variation | Through Variable Frequency Drive |
| Power Consumption | 2.5 KW |
| Electrical Connection | 440V, 3 Phase (4 Wire System), 50 Hz |
| Control Panel | Bottom Pendant Type, Machine Mounted |
| Production Counter | Inbuilt |
| Conveyor Height | Adjustable, 800–850 mm |
| Dimensions (LxWxH) | 1400 x 1150 x 1750 mm |
| Net Weight | 275 kg |
| Gross Weight | 500 kg |
Why Choose Technogen Enterprise Semi Automatic Tube Filling Machines in Canada?
Precision & Reliability: Guaranteed filling accuracy with minimal wastage.
Hygiene & Safety: SS316L contact parts and guarded mechanisms ensure compliance with Canadian health regulations.
User-Friendly Operation: Easy-to-use interface with minimal operator training required.
Durability: Built with CE-certified motors, gearboxes, and high-quality materials for long-term use.
Cost-Effective: Offers excellent value with high efficiency at competitive pricing.
Customization: Can be tailored to suit specific tube sizes, volumes, and industry requirements.
Trusted Global Supplier: Serving clients worldwide with professional support and after-sales service.
Benefits for Canadian Businesses
Streamlined Production: Achieve consistent output of 30–40 tubes per minute.
Regulatory Compliance: Fully meets CGMP standards, essential for Canadian pharmaceutical and cosmetic industries.
Tamper-Proof Packaging: Enhances consumer trust by ensuring safety and integrity.
Scalability: Ideal for medium-scale businesses and expanding operations.
Professional Branding: Coding unit allows batch and manufacturing data printing directly on tubes.
Conclusion – Invest in Reliable Tube Filling & Sealing
The Semi Automatic Tube Filling and Sealing Machine (TGAU-30S) from Technogen Enterprise is a powerful, precise, and reliable solution for Canadian businesses across pharmaceuticals, cosmetics, and other industries. Its advanced features, hygienic design, and robust build quality make it a preferred choice for companies looking to scale operations while ensuring consistent product quality.
Upgrade your packaging line with Technogen Enterprise and experience the difference in efficiency, precision, and reliability.
