Automatic Bottle Aluminum Foil Sealing Machine For Canadian Packaging
Automatic Bottle Aluminum Foil Sealing Machine Details

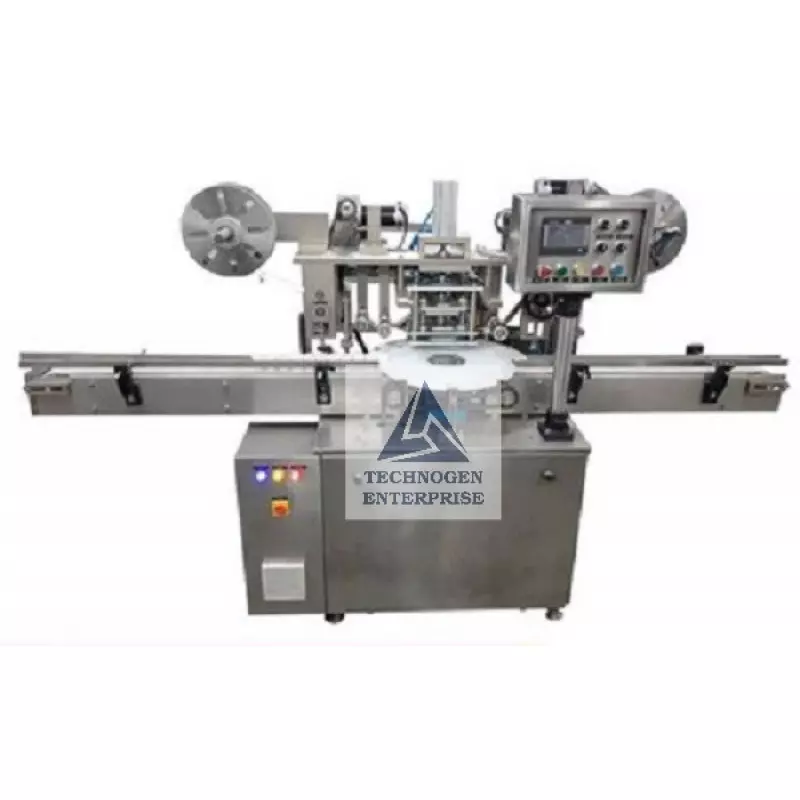

Automatic Bottle Aluminum Foil Sealing Machine for Canadian Packaging
In today’s competitive packaging industry, businesses in Canada’s major industrial hubs such as Toronto, Vancouver, Montreal, Calgary, and Edmonton need reliable machinery to ensure product safety and extended shelf life. One of the most effective solutions is the Automatic Bottle Aluminum Foil Sealing Machine, designed to create airtight, tamper-proof seals for bottles and jars.
Technogen Enterprise, a global leader in packaging machinery from Ahmedabad, India, proudly supplies this advanced sealing solution to Canadian industries. The TGBAFS-60 Automatic Bottle Aluminum Foil Sealing Machine offers unmatched efficiency, accuracy, and compliance with CGMP standards, making it an indispensable tool for businesses across food, beverages, pharmaceuticals, pesticides, and cosmetics sectors.
Why Foil Sealing Matters for Canadian Businesses
Canadian industries face growing demands for product safety, hygiene, and export compliance. An Automatic Bottle Aluminum Foil Sealing Machine provides critical advantages:
✅ Leak Prevention – Prevents spills and damage during long-distance shipping across Canada or international exports.
✅ Contamination Protection – Safeguards products from dust, dirt, and external contaminants.
✅ Extended Shelf Life – Airtight sealing preserves freshness and product integrity.
✅ Tamper Evidence – Secure seals add an extra layer of consumer trust.
✅ Versatility – Works with various foil types and bottle sizes for multiple industries.
Salient Features
The TGBAFS-60 Automatic Bottle Aluminum Foil Sealing Machine comes with advanced features to ensure efficient, safe, and reliable operations:
Compact & Modular Design – Space-saving structure, easy integration, and customizable setup.
AISI 304 Stainless Steel Contact Parts – Hygienic, corrosion-resistant, and compliant with food & pharma standards.
User-Friendly & Durable – Simple operation with intuitive controls and long-lasting durability.
Separate Gearbox & Motor – Independent control ensures smooth conveyor and sealing head operation.
Safety Clutch Device – Prevents overload or jamming damage at the star wheel.
Foil Winding & Unwinding Unit – Smooth, precise foil feeding without misalignment.
Conduction Sealing Technology – Provides airtight, leak-proof seals.
Uniform Cutting & Sealing – Clean, precise foil application on every bottle.
Online & Offline Use – Compatible with existing production lines or as a standalone unit.
No Bottle–No Foil Functionality – Eliminates material wastage and improves efficiency.
Precise Temperature Control – Optimized sealing conditions for consistent results.
Supports Multiple Foil Types – Aluminum Poly Foil, Polyester Poly Foil, Laminates, Paper Poly Foil, and Glassine Poly Foil.
7-inch True Color HMI – Real-time monitoring, easy control, and user-friendly interface.
Add-On Safety Cabinet – Optional toughened/polycarbonate/acrylic safety enclosure for added operator protection.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Name | Automatic Bottle Aluminum Foil Sealing Machine |
| Model | TGBAFS-60 |
| Brand | Technogen Enterprise |
| Automation Grade | Automatic |
| Operating Direction | Left to Right |
| Number of Sealing Heads | Single |
| Output Capacity | 50–60 bottles/min (depending on bottle diameter) |
| Bottle Diameter | 20 mm – 70 mm max |
| Bottle Height | 50 mm – 180 mm max |
| Foil Placing Round Plate | 325 mm |
| Core Diameter of Foil Roll | 76 mm |
| Maximum Outside Diameter of Roll | 300 mm |
| Heater Type | Pin-type heater (2 nos.) |
| Electrical Supply | 3 KW |
| Power Requirement | 440 V, 3 Phase, 50 Hz |
| Air Requirement | 6 Bar |
| Conveyor Height | Adjustable 800–850 mm |
| Machine Dimensions | 1830 mm (L) x 850 mm (W) x 1575 mm (H) |
Applications Across Canadian Industries
The Automatic Bottle Aluminum Foil Sealing Machine is widely used across Canada’s diverse industries:
Food & Beverages (Toronto, Vancouver, Calgary) – Secures jars, sauces, juices, and condiments.
Pharmaceuticals (Montreal, Hamilton, Mississauga) – Airtight sealing for medical and nutraceutical products.
Cosmetics & Personal Care (Toronto, Edmonton) – Reliable packaging for lotions, creams, and powders.
Pesticides & Chemicals (Winnipeg, Calgary) – Leak-proof sealing for agrochemical containers.
E-commerce Packaging (Toronto, Vancouver, Montreal) – Ensures safe delivery across long shipping routes.
Benefits for Canadian Businesses
Reduced Product Loss – Secure seals prevent returns due to leakage.
Enhanced Consumer Safety – Tamper-proof packaging builds customer confidence.
Improved Productivity – Sealing up to 60 bottles per minute.
Export-Ready Compliance – Meets global hygiene and safety standards.
Versatility – Suitable for SMEs and large-scale manufacturers alike.
Why Choose Technogen Enterprise?
Trusted Global Exporter – Serving multiple industries across Canada.
CGMP-Compliant Manufacturing – Ensuring quality and reliability.
Cutting-Edge Technology – PLC, HMI, VFD, and advanced heating modules.
Cost-Effective Solution – High efficiency with reduced material waste.
Strong After-Sales Support – Comprehensive installation, training, and service.
Conclusion
For businesses in Toronto, Vancouver, Montreal, Calgary, Edmonton, Winnipeg, Hamilton, and Mississauga, the Automatic Bottle Aluminum Foil Sealing Machine from Technogen Enterprise is the ultimate choice for safe, efficient, and hygienic packaging. Its robust construction, energy efficiency, and advanced automation features ensure that your products remain secure, tamper-proof, and fresh for longer.
Whether you’re in food, pharmaceuticals, cosmetics, or chemicals, this machine guarantees value, reliability, and productivity for your Canadian operations.
