Automatic Rotary Ampoule Washing Machine For Pharma Applications In Canada

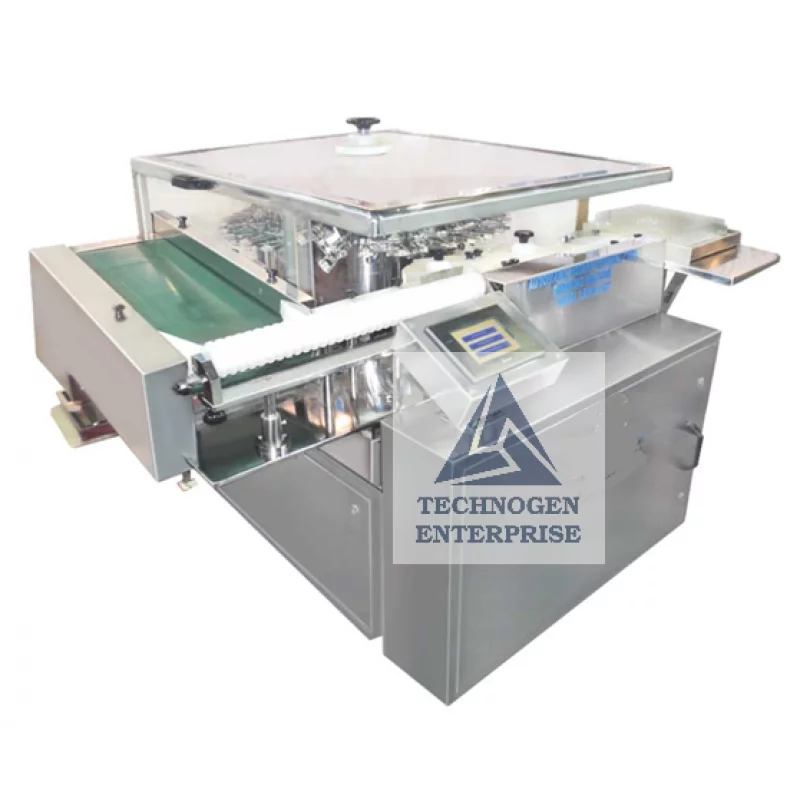

Automatic Rotary Ampoule Washing Machine Details
Technogen Enterprise is a leading manufacturer, supplier, and exporter of the Automatic Rotary Ampoule Washing Machine, specially designed for pharmaceutical and injectable formulation plants of Canada.
This high-speed equipment ensures thorough cleaning of both the internal and external surfaces of ampoules using a rotary continuous motion system. With its innovative gripper technology, the machine securely holds each ampoule by the neck, inverts it for complete internal washing, and finally releases it onto the outfeed starwheel in an upright position.
By integrating six washing stations under a protective dome, the machine delivers a precise combination of three internal water washes (Recycled, Purified, and WFI) and three sterile air washes. Additionally, for external cleaning, the equipment includes one air wash and one water wash.
Salient Features
cGMP-compliant design for international pharmaceutical standards.
Visible washing process for monitoring and operational transparency.
Infeed turntable to efficiently feed ampoules into the washing system.
Main drive powered by worm gearbox and motor for smooth rotary motion.
Servo-driven or mechanical cam dive-in washing nozzles for precision cleaning.
Integrated water heater with temperature control for recycled water.
Three-stage water washing sequence – Recycled, Purified, and WFI water, followed by sterile compressed air.
Dedicated filtration systems for purified water, WFI, recirculated water, and sterile air.
Pressure transmitter system with interlocks for water and air monitoring.
Temperature transmitter system with interlock to monitor recycled water.
Aseptic diaphragm-type valves for air and water media.
AISI 316L stainless steel contact parts to ensure contamination-free cleaning.
Electropolished SS 316 piping with orbital welding for long-lasting durability.
Vapour exhaust system with blower to eliminate condensate (ducting optional).
Optional auto-drain facility for easy cleaning at batch end.
Polycarbonate safety covers for washing stations and outfeed.
PLC with touch-screen HMI for advanced automation and user-friendly operation.
Technical Specifications
| Model No. | TGAW-120-R | TGAW-240-R |
|---|---|---|
| Speed | 120 ampoules/min (depending on size) | 240 ampoules/min (depending on size) |
| Dimensions (L × W × H) | 2130 × 1650 × 1500 mm | 2650 × 1850 × 1550 mm |
| No. of Washing Stations | 15 stations (each with 3 grippers) | 20 stations (each with 3 grippers) |
| Direction | Left to Right | Left to Right |
| Ampoule Diameter | 14 mm – 55 mm | 14 mm – 55 mm |
| Ampoule Height | 30 mm – 110 mm | 30 mm – 110 mm |
| Ampoule Neck Size | 13 mm, 20 mm, 32 mm | 13 mm, 20 mm, 32 mm |
| Ampoule Sizes | 2 ml – 100 ml | 2 ml – 100 ml |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Electrical Input | 440 V, 3 Phase, 50 Hz | 440 V, 3 Phase, 50 Hz |
| Washing Type | Continuous Rotary Motion | Continuous Rotary Motion |
| Number of Washes | Internal – 3 water + 3 air; External – 1 water + 1 air | Same |
| Working Height | 900 – 950 mm adjustable | 900 – 950 mm adjustable |
Add-On Features
21 CFR Part 11 compliance for regulatory documentation and data integrity.
Air flushing with auto tank draining system for enhanced cleaning efficiency.
Applications
The Automatic Rotary Ampoule Washing Machine is widely used across pharmaceutical facilities in Canada and worldwide for:
Sterile ampoule preparation before filling and sealing.
High-volume injectable production lines.
Washing ampoules of different sizes (2 ml to 100 ml) with minimal change parts.
Compliance with strict GMP regulations in pharmaceutical exports.
Why Choose Technogen?
Proven expertise in advanced pharmaceutical washing technology.
High-speed performance up to 240 ampoules per minute.
Durable AISI 316L construction for critical contact parts.
Flexible add-ons to meet regulatory and production needs.
Trusted supplier in Canada and across global pharma markets.
Conclusion
For Canadian pharmaceutical manufacturers, the Automatic Rotary Ampoule Washing Machine by Technogen Enterprise is an ideal choice to ensure flawless internal and external cleaning of ampoules. Its rotary continuous motion, high throughput, cGMP compliance, and advanced automation make it a valuable addition to modern injectable production facilities.
With Technogen’s focus on innovation, durability, and customer satisfaction, this machine guarantees performance that meets both domestic and international standards.
