Automatic External Ampoule Washing Machine For Pharmaceutical Industries In Canada

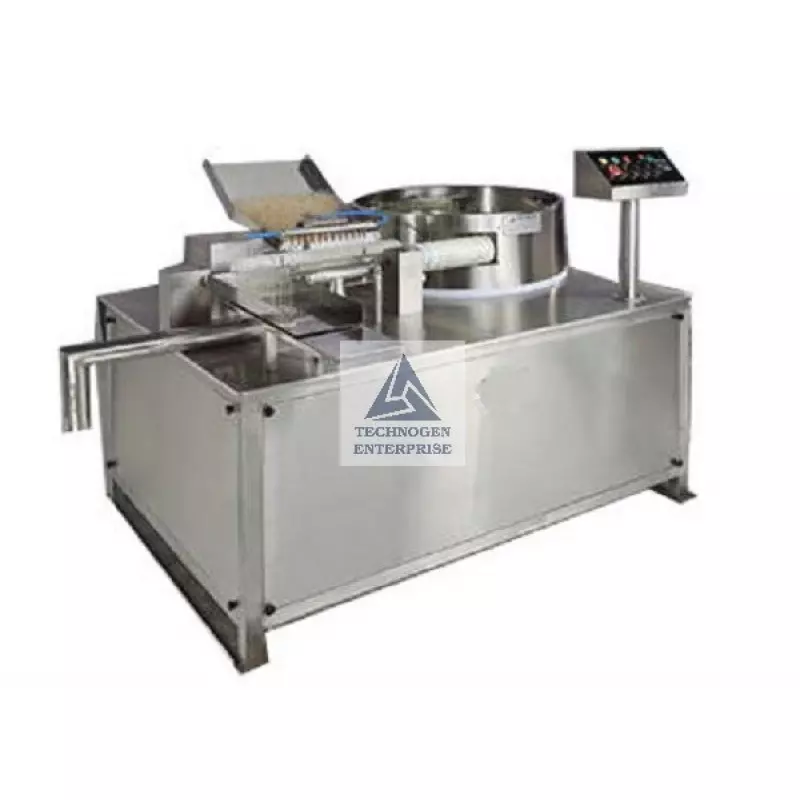

Technogen Enterprise, a trusted global brand in pharmaceutical machinery, proudly offers the Automatic Rotary External Ampoule Washing Machine – Model TGAW-250RE. Designed for the pharmaceutical sector, this robust machine specializes in cleaning the external surface of ampoules with unmatched efficiency and compliance.

Built on the principle of rotary continuous motion, the TGAW-250RE ensures consistent and precise cleaning. Equipped with four dedicated washing stations, this machine guarantees that ampoules are delivered spotless, dry, and ready for downstream operations such as labeling, sterilization, and filling.

Working Principle

The washing process is designed for smooth handling and maximum efficiency.

1. Loading – Ampoules are placed on the loading tray and precisely spaced with the help of a feed worm.

2. Rotary Wheel Transfer – Ampoules are gently transferred to the rotating wheel for external washing.

3. First Washing Station – Uses tap water for an initial wash. For ampoules with higher contamination, an optional detergent wash can be applied.

4. Second Washing Station – A dedicated tap water wash ensures thorough cleaning.

5. Final Washing Stations (Exit Worm Feed) – Two combined washing units:

   • Blowing Station – Uses sterile dry air to eliminate water droplets.

   • Heating Station – Hot air ensures complete drying and prevents microbial growth.

This structured sequence ensures that every ampoule meets the strict cleanliness standards of pharmaceutical production.

Salient Features

• cGMP Compliant Design – Meets international pharmaceutical quality standards.

• Sturdy Build – Machine body constructed with AISI 304 stainless steel for durability.

• Precision Drive System – Worm gearbox coupled with gear motor ensures smooth operation.

• Tray-Based Loading & Unloading – Simple and effective handling system.

• Four-Stage External Washing Sequence – Provides complete ampoule cleaning and drying.

• Dedicated SS 316L Tanks – Two tanks (50 litres each) with horizontal multistage centrifugal pumps.

• Variable Frequency Drive (VFD) – Allows precise speed regulation of the machine.

• Energy-Efficient Heating – Three heaters (1 KW each) for reliable drying performance.

• Compact Design – Occupies less floor space while delivering high output.

Technical Specifications

Add-On Features

• PLC-HMI Interface – Advanced automation and ease of operation.

• Optional Detergent Wash – For ampoules with higher contamination.

• Swiss Air Heating System – Ensures precise and efficient drying.

Applications

The Automatic Rotary External Ampoule Washing Machine is designed to cater to a wide range of pharmaceutical needs, including:

• External cleaning of ampoules before labeling and sterilization

• Pharmaceutical production lines in injectable facilities

• High-speed ampoule cleaning in export-ready pharma plants

• Canadian pharmaceutical companies ensuring GMP compliance

Why Choose Technogen’s Ampoule Washer?

• Proven Reliability – Built with high-quality materials for long service life.

• Efficient Performance – Capable of washing up to 250 ampoules per minute.

• Regulatory Compliance – Designed in accordance with international GMP standards.

• Custom Solutions – Available with add-on features to match specific customer needs.

• Trusted Worldwide – Serving clients in Canada and across global markets.

Final Thoughts

For pharmaceutical manufacturers in Canada, the Automatic Rotary External Ampoule Washing Machine TGAW-250RE by Technogen Enterprise is a reliable solution to meet the highest standards of cleanliness, compliance, and production efficiency.

Its rotary continuous motion, four-stage washing process, and customizable features make it the ideal choice for any pharmaceutical plant looking to ensure sterile and contaminant-free ampoules.

Technogen Enterprise continues to deliver innovative, durable, and customer-focused solutions for the pharmaceutical industry worldwide.
