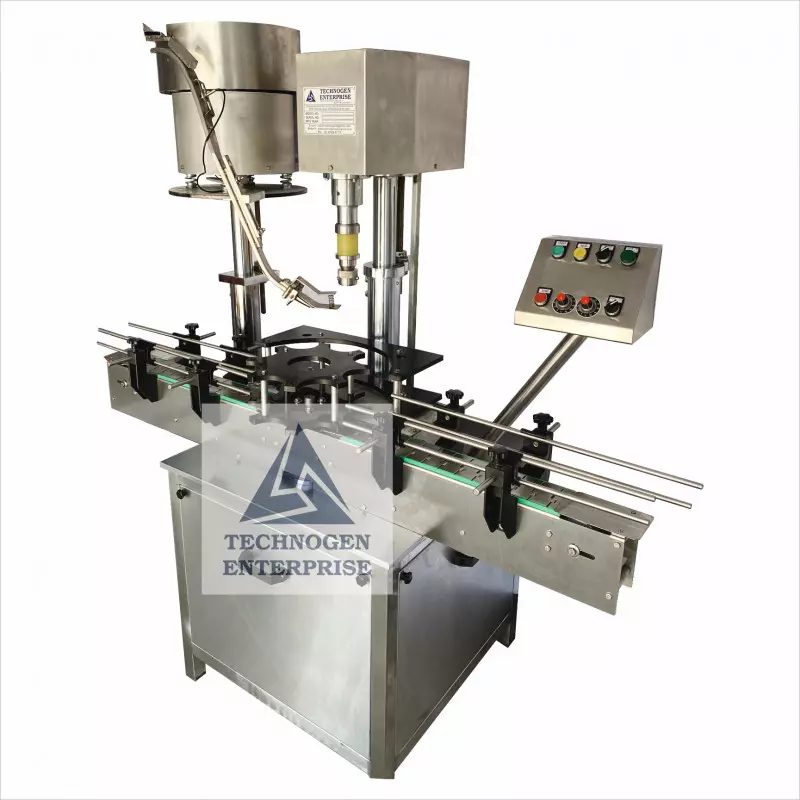

Automatic Single Head Crown Capping Machine In Canada
Automatic Single Head Crown Capping Machine Details
Technogen Enterprise proudly introduces the Automatic Single Head Crown Capping Machine – a high-performance crown corking solution engineered to deliver efficiency, accuracy, and reliability for Canadian beverage industries.
From breweries in Toronto and Montreal to sparkling water and carbonated drink producers in Vancouver, Calgary, and Edmonton, this machine is specifically designed for beer, carbonated beverages, mineral water, and fermenting wine bottles.
With a production speed of 30–40 bottles per minute, the machine ensures seamless integration into modern bottling lines while maintaining hygienic, consistent, and tamper-proof crown sealing.
Key Benefits
Optimized for Canadian Beverage Industries – perfectly suited for beer, soda, sparkling water, and wine producers.
High-Speed Capping – up to 40 bottles per minute, ensuring efficiency on packaging lines.
Durable Stainless-Steel Build – machine body, doors, and crown head made from SS 304 grade steel for long-lasting performance.
Compact & Modular Design – space-saving, easy to integrate into existing production setups.
Precise & Consistent Capping – magnetic torque-based capping head ensures uniform sealing.
User-Friendly Operation – quick format changeover, smooth bottle handling, and simple control panel.
Salient Features
Compact and modular design – built for industrial use
Stainless steel 304 metallurgy for hygiene and durability
Exact positive bottle handling system for smooth operations
Variable frequency drive (VFD) for speed control
Quick and easy changeover for different bottles and caps
Stainless steel slat conveyor for efficient movement
Star wheel & back guide set made from UHMW/Delrin for long life
Single motor synchronizes conveyor, star wheel & turret
Photoelectric sensor for no cap detection & auto-stop
Vibrator bowl feeder for cap storage & sorting
Inbuilt 6-digit production counter for tracking output
Safety Features
CGMP-compliant model
Star wheel safety clutch system to prevent damage
No Bottle – No Cap system to avoid wastage
Automatic vibrator ON/OFF system
Emergency stop switch for operator protection
Optional safety cabinet (polycarbonate / toughened glass) for full enclosure
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Name | Automatic Single Head Crown Capping Machine |
| Model | TGCROWN-50 |
| Direction | Left to Right |
| Automation Grade | Fully Automatic |
| Application | Crown capping of beer, carbonated beverages, sparkling water, and wine bottles |
| Capping Mechanism | Shut pick-up (single cam control) |
| Brand | Technogen Enterprise |
| Production Speed | 30 – 40 Bottles/Minute |
| Speed Variation | VFD controlled |
| Bottle Diameter Range | 22 – 100 mm |
| Bottle Height Range | 55 – 150 mm |
| Crown Cap Diameter | 22 – 65 mm (with change parts) |
| Crown Cap Height | 15 – 18 mm |
| No. of Capping Heads | 1 |
| Capping Head Type | Crown corking |
| Cap Feeding System | Vibrator Feeder |
| Power Requirement | 1 HP (main drive) + 0.25 HP (cap feeder) |
| Electrical Connection | 440V, 3 Phase, 50 Hz |
| Conveyor Height | Adjustable 800 – 850 mm |
| Control Panel | Bottom pendant type |
| Machine Dimensions (L×W×H) | 1830 × 850 × 1500 mm |
| Net Weight | 250 Kg |
| Gross Weight | 450 Kg |
| Origin | Made in India |
Add-on Features
PLC & HMI interface for smart automation
Automatic head up & down system for flexibility
Enclosed safety cabinet (toughened glass / polycarbonate / acrylic)
Applications in Canadian Industry
Breweries – crown corking for beer bottles in Toronto, Vancouver, and Calgary
Carbonated Beverage Plants – soda and soft drink bottling in Montreal & Ottawa
Sparkling Mineral Water Manufacturers – consistent capping in British Columbia & Alberta
Wine Industry – fermenting wine bottle sealing in Niagara, Quebec, and Okanagan Valley
Contract Bottlers & Packaging Units – flexible solution for medium-scale operations across Canada
Why Choose Technogen for Canada?
Export-quality crown capping machines trusted worldwide
High reliability, low maintenance, and long machine life
Tailored support for Canadian clients – quick spare availability & technical guidance
Proven expertise in beer, beverage & wine packaging solutions
Affordable automation for both mid-size and large bottling plants
Final Thoughts
The Automatic Single Head Crown Capping Machine by Technogen Enterprise is the ideal choice for Canadian breweries, soft drink manufacturers, and wine producers who demand hygienic, reliable, and efficient packaging.
With its robust stainless-steel design, high-speed operation, and advanced safety features, it is the pinnacle of crown corking technology.
? Get in touch with Technogen Enterprise today to request a quote for the Automatic Single Head Crown Capping Machine and take your Canadian bottling operations to the next level of performance and quality.
