Automatic Single Head Lug Capping Machine In Canada

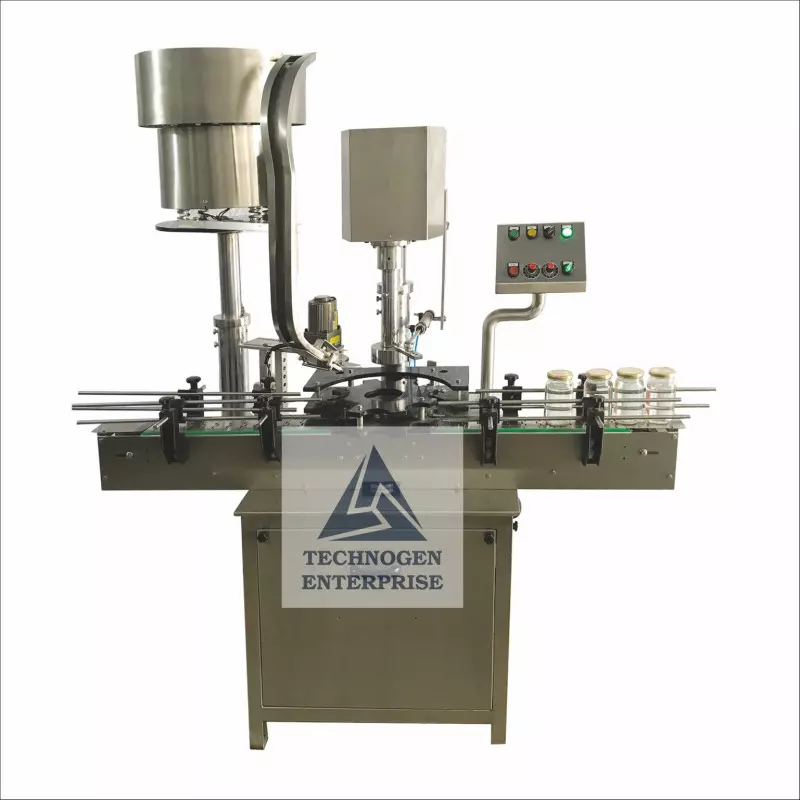

Automatic Single Head Lug Capping Machine Details
Technogen Enterprise, a trusted manufacturer, supplier, and exporter, introduces the Automatic Single Head Lug Capping Machine – Model TGLC-50, designed for the needs of the food, dairy, milk, vinegar, and pickle industries across Canada.
This machine ensures precision torque application with its pneumatic-mechanical magnetic hysteresis clutch-based capping head. It is equipped with both a cap feeder elevator and a cap feeder vibrator for smooth feeding of lug caps.
With a compact footprint and hygienic stainless-steel construction, the Single Head Lug Capping Machine is a reliable packaging solution for Canadian manufacturers in Toronto, Montreal, Vancouver, Calgary, Edmonton, Mississauga, and Winnipeg.
Salient Features
Compact and durable CGMP-compliant design
All contact parts with bottles & lug caps are made from SS 304 stainless steel
Single motor synchronization for conveyor, star wheel & turret
Torque-adjustable lug capping head with pneumatic-magnetic hysteresis clutch
Dual cap feeding options – feeder elevator & feeder vibrator
Quick format changeover for different bottle sizes
Reliable for continuous industrial use with low maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TGLC-50 |
| Direction | Left to Right |
| Type of Capping | Lug Capping |
| Cap Pick Mechanism | Shut Pick-Up |
| Power Consumption | 1.5 HP (Main Drive) |
| Output Capacity | 30 – 40 Bottles/Minute (depending on bottle & cap size) |
| No. of Capping Heads | Single |
| Power Requirement | 230 V, 1 Phase, 50 Hz |
| Conveyor Height | Adjustable 800 – 850 mm |
| Bottle Diameter Range | 22 – 100 mm |
| Bottle Height Range | 15 – 100 mm |
| Lug Cap Diameter Range | 22 – 84 mm |
| Machine Dimensions (L×W×H) | 1830 × 875 × 1450 mm |
Safety Interlocks
No Bottle – No Cap system prevents wastage
Star wheel safety clutch system halts machine during jams
Automatic orientator on/off system for safe operation
Emergency stop function for operator safety
Add-On Features
PLC – HMI Interface for advanced automation
Toughened glass, polycarbonate, or acrylic safety cabinet with door interlock
Applications in Canada
Food Industry – sealing pickle jars, vinegar bottles in Toronto & Montreal
Dairy & Milk Industry – hygienic bottle sealing in Calgary & Vancouver
Condiments & Sauces – ketchup, spreads, and preserves packaging in Edmonton & Winnipeg
Beverage Industry – lug capping solutions for niche drink packaging across Ontario & British Columbia
Why Choose Technogen for Canadian Industries?
Global Export Quality with proven reliability
Fast production speed – 30 to 40 bottles/minute
Uniform torque sealing prevents leaks and ensures safety
Compact, low-maintenance machine suitable for both startups and large-scale plants
After-sales support in Canada for installation, training, and maintenance
Final Thoughts
The Automatic Single Head Lug Capping Machine by Technogen Enterprise is an ideal capping solution for Canadian manufacturers in the food, dairy, condiments, and beverage sectors. With advanced torque control, quick changeovers, and robust safety features, it ensures consistent and efficient production.
? Contact Technogen Enterprise today to request a quote or discuss how the TGLC-50 Lug Capping Machine can optimize your Canadian packaging line.
