Automatic Linear Capping Machine In Canada

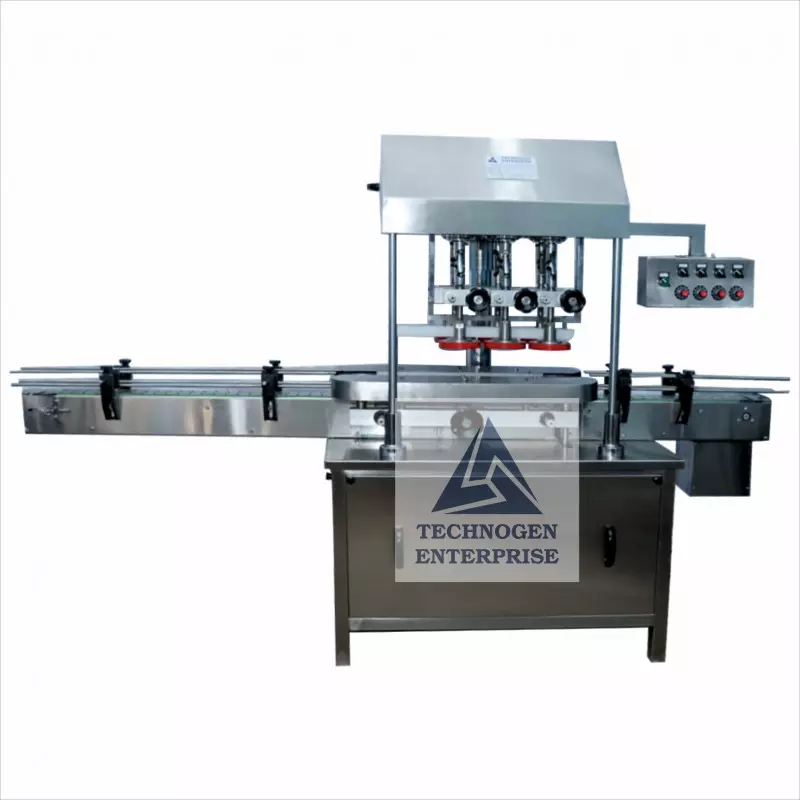

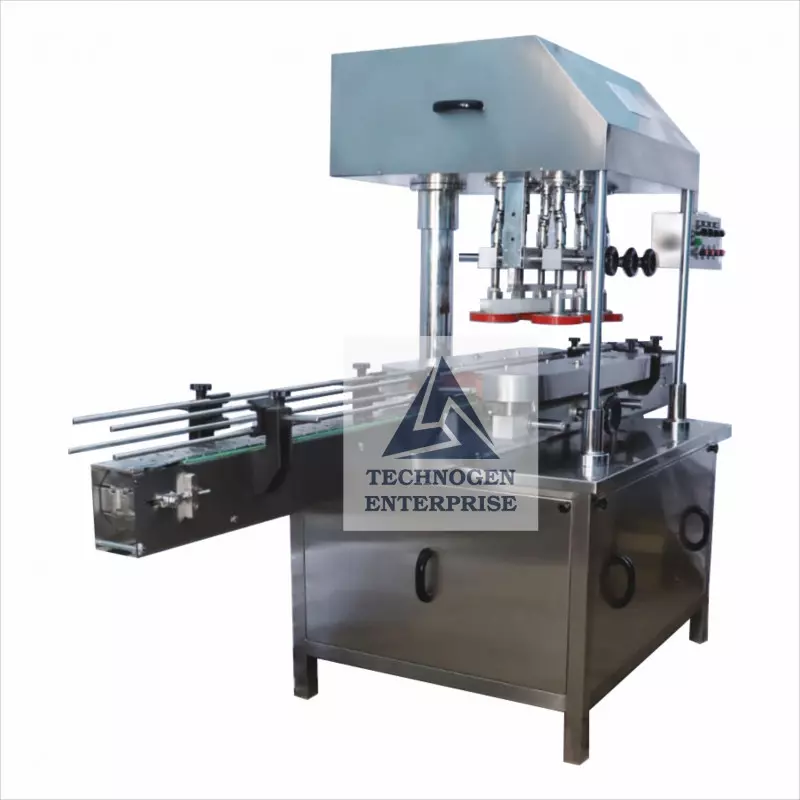

Automatic Linear Capping Machine Details
Technogen Enterprise, a trusted manufacturer, supplier, and exporter of packaging machinery from India, introduces the Automatic Linear Capping Machine to the Canadian market. Designed to deliver high-speed, precise screw capping at up to 100 bottles per minute, this machine is an ideal choice for industries that require scalability, accuracy, and durability.
Canadian businesses in Toronto, Vancouver, Montreal, Calgary, Edmonton, Winnipeg, and Ottawa trust linear capping solutions for sectors including pharmaceuticals, beverages, distilleries, cosmetics, edible oils, pesticides, and food processing.
Built with a linear motion design, this capping machine handles bottles of round, square, flat, and irregular shapes with minimal change parts, saving both time and cost. Its state-of-the-art gripping assembly and tightening disc system ensure secure, leak-proof closures for diverse cap types.
Salient Features
Compact, cGMP-compliant model suitable for Canadian manufacturing units
Constructed with premium-grade stainless steel for durability
Flexible linear design handles threaded caps, jars, spray caps, and metal caps
Multiple cap feeding options – vibratory feeder or elevator feeder
Advanced bottle gripping system ensures steady alignment during capping
3 sets of tightening discs for precise screw capping
Built-in clutch system prevents cap over-rotation
Quick, tool-less adjustments for different bottle sizes
Minimal or no change parts required for container size changes
Low energy consumption and maintenance-free operation
Variable frequency drive (VFD) for easy speed control
Safety Features
No Bottle – No Cap mechanism prevents wastage and machine wear
No Cap – Cap Feeder On safeguard ensures smooth operation without stoppages
Add-On Features
PLC-HMI Interface for intelligent automation and monitoring
Toughened glass / polycarbonate safety cabinet with interlock doors for operator safety
Technical Specification – Automatic Linear Capping Machine
| Parameter | Details |
|---|---|
| Machine Name | Automatic Linear Capping Machine |
| Model No | TGLC-100 |
| Brand | Technogen Enterprise |
| Direction | Left to Right |
| Automation Grade | Automatic |
| Application | Screw Capping on Glass, Plastic, HDPE, LDPE & PET Bottles |
| Production Speed | Up to 100 Bottles/Minute (depending on cap & bottle size) |
| Speed Control | Variable Frequency Drive (VFD) |
| Cap Feeding System | Cap Feeder Elevator or Vibrator |
| Bottle Holding | Belt Assembly |
| No. of Cap Tightening Discs | 6 (3 sets of tightening devices) |
| Container Diameter Range | 50 mm – 200 mm |
| Container Height Range | 75 mm – 400 mm |
| Cap Diameter Range | 18 mm – 120 mm |
| Conveyor Height | 850 ± 50 mm (adjustable) |
| Electrical Connection | 440 V, 3 Phase (4-Wire System), 50 Hz |
| Power Consumption | 2 KW |
| Control Panel | SS 304, Bottom Pendant Type, Machine-Mounted |
| Production Counter | Inbuilt 6-digit counter |
| Dimensions (L × W × H) | 1830 mm × 1230 mm × 1600 mm |
| Net Weight | 250 kg |
| Gross Weight | 475 kg |
| Warranty | 1 Year from Date of Dispatch |
| Country of Origin | India |
Applications Across Canadian Industries
Pharmaceuticals – Secure closures for liquid medicines and syrups in Toronto & Montreal
Beverage Industry – High-speed capping for juices, water, and energy drinks in Vancouver & Calgary
Cosmetics & Toiletries – Perfect for lotions, creams, and shampoo bottles in Mississauga & Brampton
Food & Confectionary – Capping sauces, syrups, oils, and condiments in Edmonton & Winnipeg
Distilleries & Breweries – Leak-proof sealing for alcohol, beer, and craft spirits across Canada
Final Thoughts
The Automatic Linear Capping Machine by Technogen Enterprise is an ideal solution for Canadian businesses seeking high productivity, minimal downtime, and long-term reliability. With its robust design, advanced safety features, and efficient capping system, it ensures seamless integration into modern production lines.
If you’re a Canadian manufacturer in pharmaceuticals, beverages, or food processing, Technogen’s Automatic Linear Capper can significantly boost your efficiency and product quality.
? Contact Technogen Enterprise today for a tailored quote and consultation.
