Automatic Pick And Place Screw Capping Machine In Canada
Pick And Place Screw Capping Machine Details

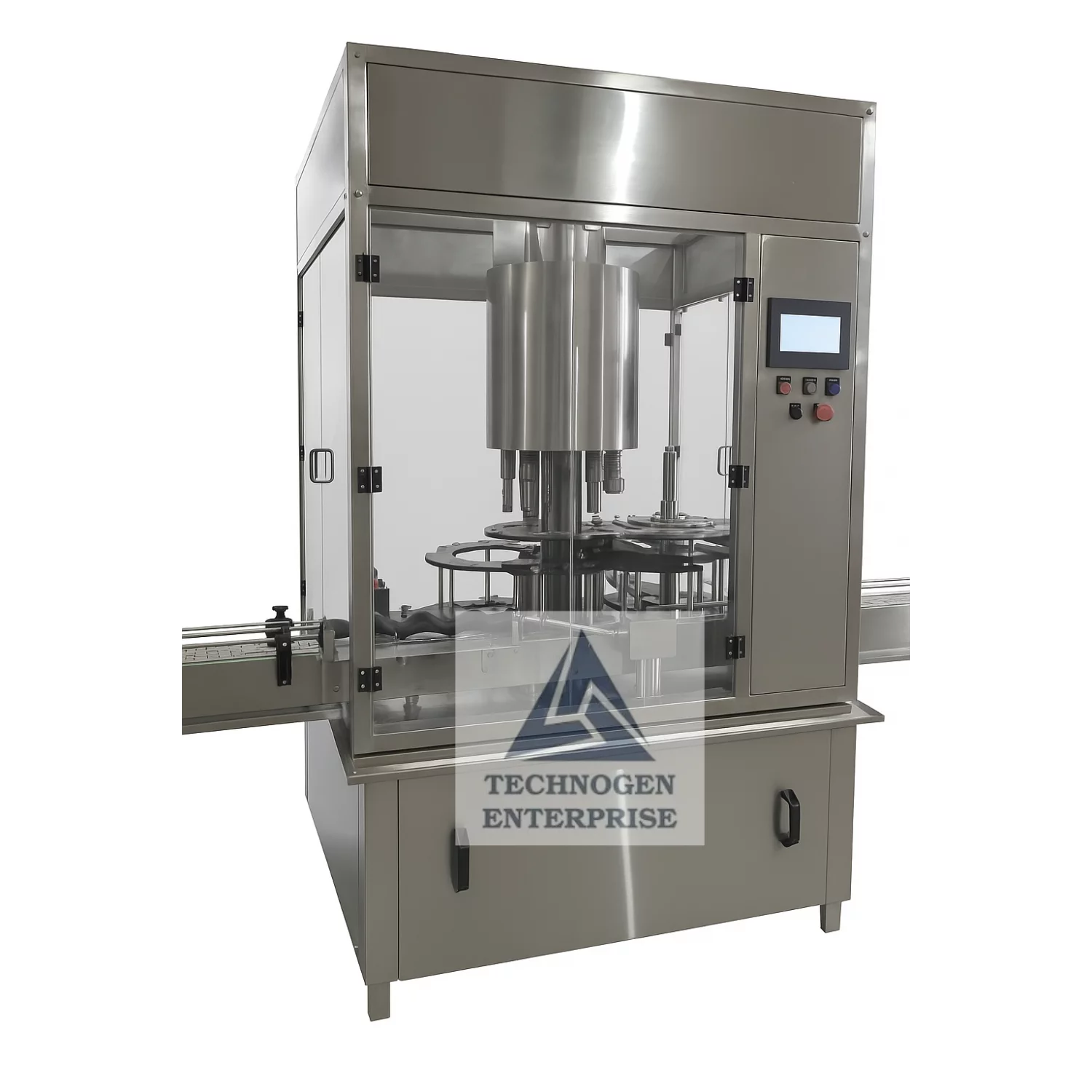

Automatic Rotary Pick and Place Screw Capping Machine
Technogen Enterprise, a leading manufacturer, supplier, and exporter of packaging machinery, introduces its Automatic Rotary Pick and Place Screw Capping Machine to the Canadian market.
Available in 4 Head, 6 Head, 8 Head, and 12 Head configurations, this machine ensures 100% precise screw capping for glass, PET, plastic, HDPE, and LDPE bottles, including Child Resistant Caps (CRC).
Canadian manufacturers in pharmaceuticals, beverages, cosmetics, edible oils, food processing, and distilleries trust Technogen’s pick-and-place technology for fast production speeds of 50 to 200 bottles per minute with unmatched accuracy.
Unlike traditional cappers, the pick-and-place mechanism ensures zero cap slippage or misalignment, thanks to its dual cam system — one cam carefully picks the cap, while the other releases it precisely onto the bottle.
Salient Features
CGMP-compliant modular construction for flexibility and customization
Built with premium SS 304 material for hygiene and durability
Elegant stainless steel matt finish adds a premium look
Single motor synchronization of conveyor, star wheel, and capping turret
Photoelectric sensor for screw cap detection, preventing empty feeds
No Bottle – No Cap system to eliminate waste
Jaw-type magnetic screw capping head with torque adjustment
Multiple cap feeding options – vibrator feeder, mechanical orientator, or elevator
Fast product changeover with minimal downtime
6-digit production counter for real-time monitoring
Ideal for Canadian industries in Toronto, Vancouver, Montreal, Calgary, and Edmonton
Safety Features
No Bottle – No Cap system prevents mismatches and ensures efficiency
Emergency stop button for immediate shutdown in critical situations
Safety clutch at feed worm and star wheel halts machine if a bottle misfeeds
Outfeed bottle jam detection ensures safe stoppage to protect machine and operators
Technical Specifications
| Parameter | 4 Head Model (TGPSC-80) | 6 Head Model (TGPSC-120) | 8 Head Model (TGPSC-150) |
|---|---|---|---|
| Production Speed | 70 – 80 Bottles/Minute | Up to 120 Bottles/Minute | Up to 150 Bottles/Minute |
| Automation Grade | Automatic | Automatic | Automatic |
| Capping Method | Pick & Place with Dual Cam System | Pick & Place with Dual Cam System | Pick & Place with Dual Cam System |
| Bottle Diameter Range | 22 mm – 80 mm | 22 mm – 80 mm | 22 mm – 80 mm |
| Bottle Height Range | 55 mm – 200 mm | 55 mm – 200 mm | 55 mm – 200 mm |
| Screw Cap Diameter Range | 22 mm – 52 mm (with change parts) | 22 mm – 52 mm (with change parts) | 22 mm – 52 mm (with change parts) |
| No. of Capping Heads | 4 | 6 | 8 |
| Capping Head Type | Jaw Type Magnetic with Torque Adjustment | Jaw Type Magnetic with Torque Adjustment | Jaw Type Magnetic with Torque Adjustment |
| Power Consumption | 1 HP Main + 0.25 HP Feeder | 1 HP Main + 0.25 HP Feeder | 2 HP Main + 0.50 HP Feeder |
| Air Pressure | 2 KG/Cm² | 2 KG/Cm² | 2 KG/Cm² |
| Cap Feeding Options | Vibrator, Orientator, Elevator | Vibrator, Orientator, Elevator | Vibrator, Orientator, Elevator |
| Electrical Connection | 440V, 3 Phase, 50 Hz | 440V, 3 Phase, 50 Hz | 440V, 3 Phase, 50 Hz |
| Dimensions (L × W × H) mm | 1830 × 850 × 1500 | 2130 × 875 × 1500 | 2130 × 915 × 1500 |
| Net Weight | 275 kg | 300 kg | 325 kg |
| Gross Weight | 475 kg | 500 kg | 525 kg |
Applications in Canada
Pharmaceuticals – child-resistant closures for syrups & tablets in Toronto & Montreal
Food & Beverages – leak-proof sealing for juices, water, spirits in Vancouver & Calgary
Cosmetics & Toiletries – lotions, shampoos, creams in Mississauga & Brampton
Edible Oils & Chemicals – PET & HDPE bottles in Edmonton & Winnipeg
Distilleries & Breweries – high-speed capping for alcohol and beer packaging across Canada
Contact us for your Screw Capping Need
The Automatic Rotary Pick and Place Screw Capping Machine by Technogen Enterprise is a premium choice for Canadian industries seeking speed, flexibility, and reliability.
With modular design, multiple head options, advanced safety systems, and flawless screw capping technology, it guarantees seamless integration into high-output production lines.
Contact Technogen Enterprise today for a customized quote and bring next-level automation to your Canadian production facility.
